Freight Elevators Manufacturers

Freight Elevator

The Vosam freight elevator adopts advanced full computer control technology and is equipped with reliable AC speed control VP control system and VVVF control system. It has a simple structure, easy maintenance, and can achieve efficient signal transmission and operation control. Through a qualitative leap, the system has become more stable and reliable, with lower and smoother operation noise, and the opening and closing of inter-layer doors is more accurate, making the loading and unloading of goods easier.

Descriptions

Appliance

Collection

Parametric

Frequency conversion host
The variable frequency asynchronous traction host has the advantages of safety, energy saving, high efficiency, low noise, low vibration, smooth operation, good lubrication performance, etc. To a greater extent satisfied, it meets users' high requirements for elevator product stability, energy saving and smooth operation.

High precision flatness
The gearless freight elevator solution can effectively control the leveling accuracy within the millimeter range, ensuring the safety of fragile and vulnerable goods, and making it more convenient for the loading and unloading of goods and the entry and exit of personnel.

large tonnage
Car chassis of different models and sizes and specially designed high-strength profiles can transport goods of different tonnages. They have strong load-bearing capacity and can adapt to the transportation environment of different buildings.

Various ways to open the door
In order to meet the different access requirements of users, Vosam freight elevators have four door opening methods: side-opening bi-folding doors, center-opening bi-folding doors, single-pass doors, and through-doors. Suitable for factories, warehouses, department stores, property centers and other buildings, with flexible structural matching.
Machine roomless freight elevator

Stable load, intelligent design
The Vosam machine room-less freight elevator adopts advanced permanent magnet synchronous gearless traction technology, which eliminates the need for a reduction device, thereby improving the layout of the elevator shaft. The gearless traction machine has the characteristics of light weight and small size. It saves building space, greatly improves the performance and quality of machine room-less freight elevators, and reduces the failure rate.
Permanent magnet synchronous gearless traction machine
It adopts high-efficiency and energy-saving permanent magnet synchronous gearless drive technology and imported original high-resolution cosine encoder to ensure the elevator's ultra-smooth and comfortable operation quality.
"Compact" gearless traction machine
It is light in weight and small in size and can be installed at the top of the shaft to save construction space.
Efficient use of space
"Pull-down" traction structure saves top space
VOS-HD01
VOS-HD02
VOS-HD03
VOS-HC02

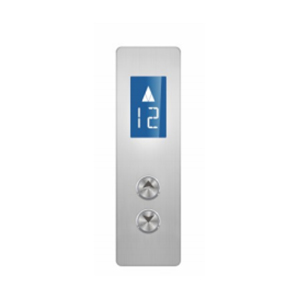

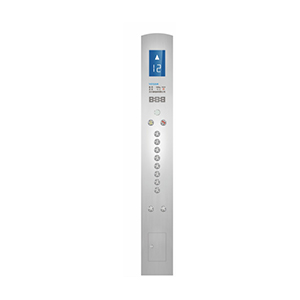

Standard configuration of cargo elevator

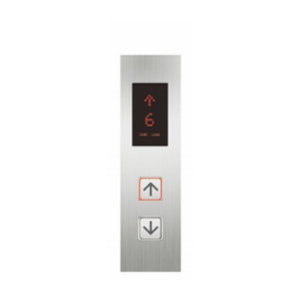

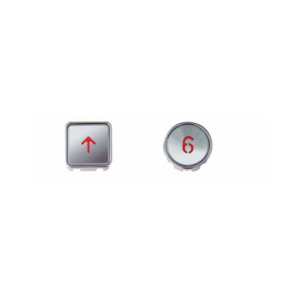

button

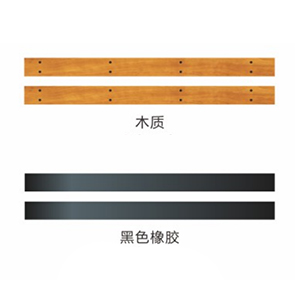

Bumper strip

VOS-HZ02
VOS-HZ03

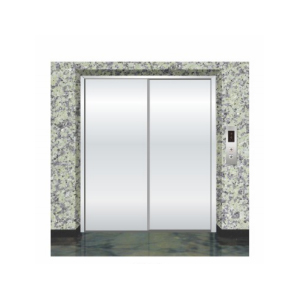

Side opening

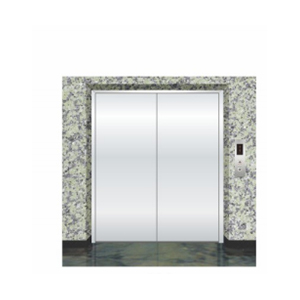

middle part

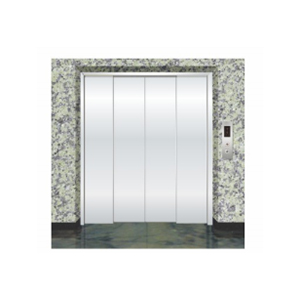

Center split bi-fold type

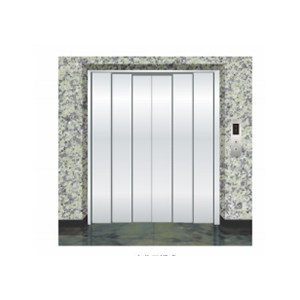

Center split three-fold type
Function Name Function Description
Closed cancel Wait In the automatic state, when the door remains fully open and in the door opening delay stage, pressing the close button can immediately execute early closing. .
Reverse instructions are automatically eliminated When running up or down, instructions opposite to the current running direction can be automatically eliminated.
Car door closing delay protection

When the elevator door opening time exceeds the predetermined time due to the call button being pressed or other factors, the elevator will force the door to close in response to other signals. When the elevator is forced to close the door several times and it still does not close tightly, the elevator will stop running and open the door, and the internal and external call signals will be automatically canceled. When the elevator detects that the door has been closed normally, the elevator will resume normal operation.

Car door opening protection When the elevator cannot open the door for more than the predetermined time due to mechanical jamming or other reasons, the internal and external call signals will be automatically cancelled, and it will drive to the adjacent floor to open the door and release passengers.
Car door closing protection

When the elevator cannot open the door for more than the predetermined time due to mechanical jamming or other reasons, and after the elevator closes the door three times and no door closing signal is detected, the elevator will automatically enter the protection state. When the elevator detects that the door has been closed normally, the elevator will resume Normal operation.

Direct drive with full load When the load in the car reaches the full load preset value, it enters the full-load direct driving state. The elevator will no longer respond to hall calls but directly respond to instructions in the car to reach the designated floor.
Elevator stop switch

That is, the parking switch. When the key switch set on the designated floor is activated, the elevator will return to the designated floor after responding to all instructions. At the same time, the energy-saving mode will be enabled, the lighting in the car will be cut off, and the parking switch indicator light outside the hall will be illuminated.

Automatic parking elevator

When all the elevators in the group control group are idle, they will automatically park on different floors of the building to increase power consumption. The response speed of the elevator group to calls.

base station

For a single elevator, the operating base station can be set according to the actual needs of the building. If there is no call or instruction registration within the predetermined time, the car will automatically return to the base station, close the door and stand by. The base station is generally located on a floor with heavy traffic or in the first floor lobby.

Car roof inspection There is an inspection box on the top of the elevator car, making inspection and maintenance safer and faster.
Car fan lighting control

Without receiving any operating instructions, the elevator will enter the energy-saving mode and shut down within a predetermined time after closing the door. Internal lighting and fans.

Overload protection

When the rated load of the car exceeds the rated allowable load, the overload buzzer will sound to indicate overload. At this time, overload is displayed. If the car does not close the door, the elevator cannot start.

Open and close button The elevator car control panel is equipped with micro buttons to control the opening and closing of the door, so that passengers can flexibly control the time of opening and closing the door according to their needs.
Hall and car doors are controlled separately

According to statistics, the door-opening waiting time caused by hall calls will be longer than the door-opening waiting time caused by commands inside the car. This function By independently adjusting the elevator's door-opening holding time when responding to calls and instructions, the overall operating efficiency is improved.

Directional instructions outside the hall and inside the car

In order to facilitate passengers to understand the running direction of the elevator, there are arrow-shaped indicator lights on the car control panel and the hall call panel to prompt the movement of the elevator. row direction.

Digital display in hall and car

The control panel in the car and the hall call box on each floor use 16-segment numbers to display the elevator floor at any time to facilitate passengers to understand the current operating position of the elevator.

Two-wire/four-wire communication Four-wire and two-wire communication are common.
Alarm bell in car In special circumstances, passengers can press the alarm button in the car to promptly notify the outside world.
Drive equipment overheating protection

When the temperature of the machine room exceeds the preset value due to excessive heat in the machine room or operation, the elevator will automatically enter the protection state. The elevator will stop nearby, open the door to safely evacuate passengers, and turn off the lighting and fans in the car. After the temperature becomes normal, the elevator will resume normal operation.

Error command canceled

After the command is registered, you can cancel the registered command by continuously clicking this button before the elevator starts. After the elevator starts, To ensure the personal safety of passengers, the system does not allow cancellation of registered signals.

Open the door outside the hall on this floor During the normal closing process, when the call button outside the hall in the same direction as the elevator is pressed, the elevator will reopen the door.
Re-initialize the run

When the power is restored due to an interruption and the elevator position signal cannot be retained or the car position cannot be determined, the elevator will drive to the end station and reposition. After positioning, the position display will display the floor location of the elevator. , and resume normal operations.

Terminal roof protection When the elevator reaches the terminal floor and the running speed does not reduce to the preset value, the system will forcefully slow down to protect the safe operation of the elevator.
Torque compensation during starting

In order to obtain a better sense of comfort when the elevator starts, the system calculates the load in the car and compensates it through the torque when starting. Provide optimization.

Emergency lighting in the car The emergency lighting device installed in the car is activated when there is a power outage.
Open and close button light When pressing the open and close button, the button light will light up to indicate a successful response.
Driver operation

By operating the switch in the control box to enter the driver-operated state, the driver can control the number of passengers in the car, response to hall calls, and open the door. Close the door and manage it.

Car arrival bell Set on the top of the car, when the elevator reaches the landing floor, a crisp bell will sound to remind passengers that they have arrived.

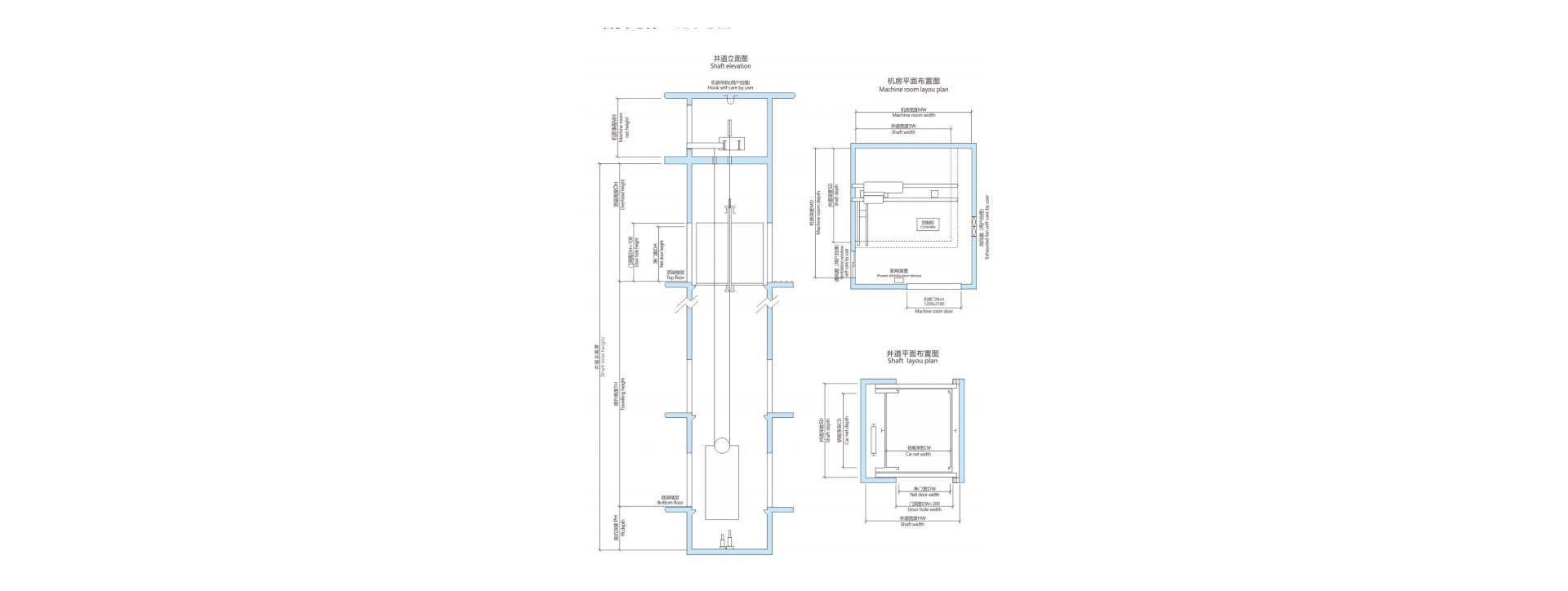

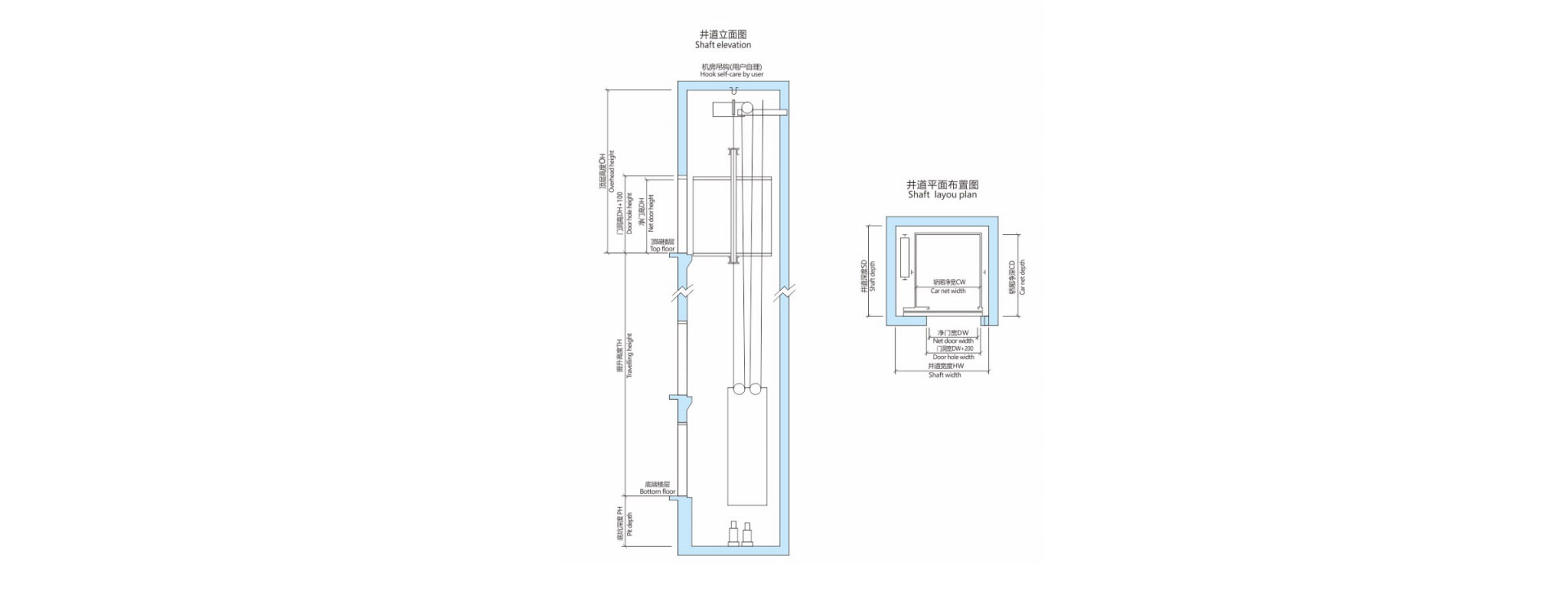

What the user should complete: This drawing is drawn according to the relevant elevator technical standards and needs to be reviewed as a basis for elevator installation. Top ventilation is left to the user after the elevator is installed. After the installation is completed, the floor decoration should have a step of appropriate height with the upper surface of the hall door sill to prevent water or other debris from entering the passage. The objects poured during installation should meet the relevant graphic requirements. The buffer base should be constructed under the guidance of the installer.
Rated load Rated speed Car net size Clean door size
Hoistway net size Shaft size
width x depth width x depth width x depth The pit is deep high top floor width x depth x height
1000 0.5 1300x1800 1000x2100 2200x2300 1500 4500 3200x3800x2400
1
1500 0.5 1600x2200 1300x2100 2500x2700 1500 4500 3500x4500x2400
1
2000 0.5 1800x2300 1500x2100 2800x2800 1500 4500 3500x4500x2500
1
3000 0.5 2000x2900 1800x2100 3400x3400 1600 4600 4000x5000x2600
5000 1 2500x3600 2000x2100 3800x4100 1700 4800 3700x6000x2800
6000 0.25 2600x3800. 2200x2400 4000x4300 1700 5500 4000x6000x3300
8000 0.25 3000x4200 2400x2400 4300x4700 1700 5500 4300x6000x3300
10000 0.25 3000x5600 2600x2400 4600x6150 1800 5500 4600x6500x3300
Rated load Rated speed Car net size Clean door size
Shaft size
width x depth width x depth width x depth The pit is deep high top floor
1000 0.5 1300x1800 1000x2100 2200x2300 1600 4200
1 4500
1600 0.5 1600x2200 1300x2100 2500x2700 1600 5000
1 5200
2000 0.5 1800x2300 1500x2100 3000x2800 1600 5000
5200
3000 0.5 2000x2900 1800x2100 3400x3400 1600 5000

Freight Elevator

Based on the demand characteristics of China's freight elevator market and combined with the company's many years of experience in elevator production, Vosam freight elevators produce reliable freight elevator products that can transport goods in various harsh environments. It has the advantages of safety and reliability, high structural strength, durability, smooth operation, large door opening distance, and high cost performance. It has become an ideal choice for transporting goods in factories, warehouses, shopping malls, property centers and other places.

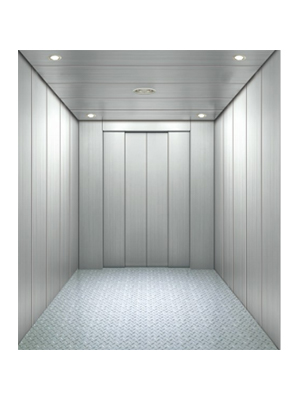

  • VOS-H001

    VOS-H001
    VOS-H001

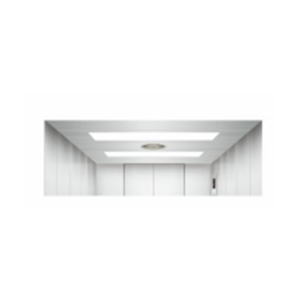

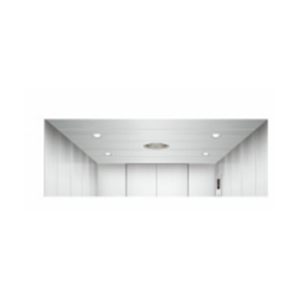

    Car roof: hairline stainless steel
    Car wall: hairline stainless steel
    Car door; hairline stainless steel
    Floor: hairline stainless steel
    Threshold: ≤3T steel plate (standard)
    > 3T cast iron (optional)
    Control box panel : Hairline stainless steel

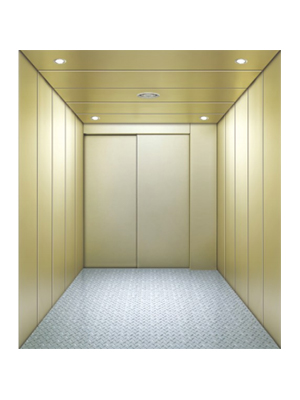

  • VOS-H002

    VOS-H002
    VOS-H001

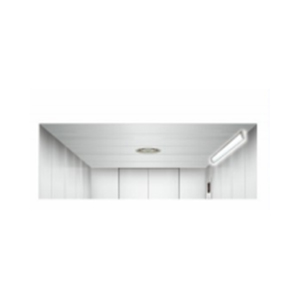

    Carceiling: Hairline stainless steel
    Carwall: Hairline stainless steel
    Car door; Hairline stainless steel
    Floor:Hairline stainless steel
    Sill:≤3T Steel plate (Standard)
            > 3T Cast iron (Optional)
    C.O.P:Hairline stainless steel
