Moving Walkway Manufacturers

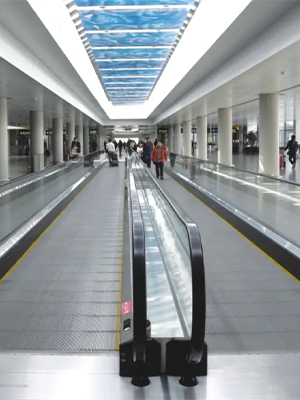

Moving walk
Smooth operation, like walking on flat ground

The professional fashion concept makes Vosam's moving walkway more beautiful in shape and smoother in curves. It not only allows passengers to appreciate the charm and luxurious style of modern architecture, but also takes safety and comfort as design standards, equipped with advanced driving devices and reliable safety The device adopts a series of shock-absorbing and anti-noise structures to make passengers feel comfortable, calm and stable during the ride.

Descriptions

Parametric

Economy
The moving walk makes full use of advanced manufacturing technology to significantly improve product performance and extend the life of the machine. Reduce customers' operating costs. The equipment can also be equipped with variable frequency drive technology, which greatly reduces energy consumption and achieves energy-saving effects, thereby further reducing operating costs.


Investment is stable and reliable
The short pedal is directly connected to the transmission chain, making the moving walk run quieter and more smoothly, greatly extending the life cycle of the entire machine and making product maintenance more convenient. The specially designed large roller handrail drive has low operating noise and high driving force, which improves the operating conditions of the handrail and gives the handrail a longer service life. The unique rectangular square tube structure has strong load-bearing capacity, which greatly improves the stability of the whole machine and extends the service life of the product.

Compact and flexible structure

The short pedal greatly reduces the space span, making the whole machine structure more compact, and can flexibly adapt to different construction patterns, saving valuable construction space for customers. The equipment is divided into three types: horizontal, vertical and compact. Customers can choose freely according to their own layout ideas.


Colorful decorative effects

Handrails are available in a variety of styles to meet the individual needs of different environments. The stamped pattern front panel is beautiful and has a three-dimensional effect. Both the inner and outer covers are made of high-quality stainless steel material.


Serial Number Safety Equipment Function Description
1 Electrostatic protection Eliminate static electricity generated during operation on steps (pedals), handrails and other parts.
2 emergency stop when When emergency stop is needed, press the emergency stop switch for protection.
3 apron protection It protects when foreign objects are caught between the steps (pedals) and the apron.
4 Handrail entrance security protection It protects the entrance of the handrail when foreign objects are caught.
5 Drive chain break protection Protects when the drive chain breaks or is too long.
6 Over speed protection It takes effect when the escalator/moving walkway speed exceeds 20% of the rated speed.
7 Under speed protection It takes effect when the escalator/moving walkway speed is lower than 80% of the rated speed.
8 Non-operation reversal protection It protects when the running direction of steps (pedals) and handrails is opposite to the specified direction.
9 Interruption and wrong phase protection It protects when the power supply phase is missing or out of phase.
10 Short circuit protection It protects when the power circuit is short-circuited.
11 Overload protection It protects the motor when it is continuously overloaded.
12 Step (pedal) subsidence protection It protects when the steps (pedals) are damaged and sink.
13 Step (pedal) chain protection It protects when the step (pedal) chain breaks or is too long.
14 Comb tooth safety protection Protects when foreign matter gets caught in the comb teeth.
15 Anti-static handrail Eliminate static electricity generated by handrails during operation.
16 Access socket Provide safe voltage for inspection or maintenance.
17 Machine room guard plate Isolate the machine room from moving parts such as steps or pedals to provide a safe space for repair or maintenance.
18 Emergency stop protection During maintenance and repair, when danger occurs or there is a possibility of danger, press the emergency stop switch to protect people and equipment.
19 Auxiliary braking The auxiliary brake stops the escalator/walk when the drive chain breaks and the steps, pedals and handrails run in the opposite direction to the designated direction.
20 handrail protection It protects the handrail when its speed changes or breaks.
21 apron brush Prevent passengers or foreign objects from being caught between the apron board and steps/pedals.


Pedal width 1000 800
Intermediate support spacing 6000 10000 6000 10000
Support reaction force

R1 40 38 35 34
R2 34.5 34 32 31
R3 62.5 78.5 52 64.5
R4 63.5 79.4 54 66.6
R5 48 79.4 40 66.6
Motor power/rated current Conveyor length Conveyor length
10000-70000 8KW/18A 10000-80000 8KW/18A
70001-110000 11KW/25A 80001-1 10000

11KW/25A

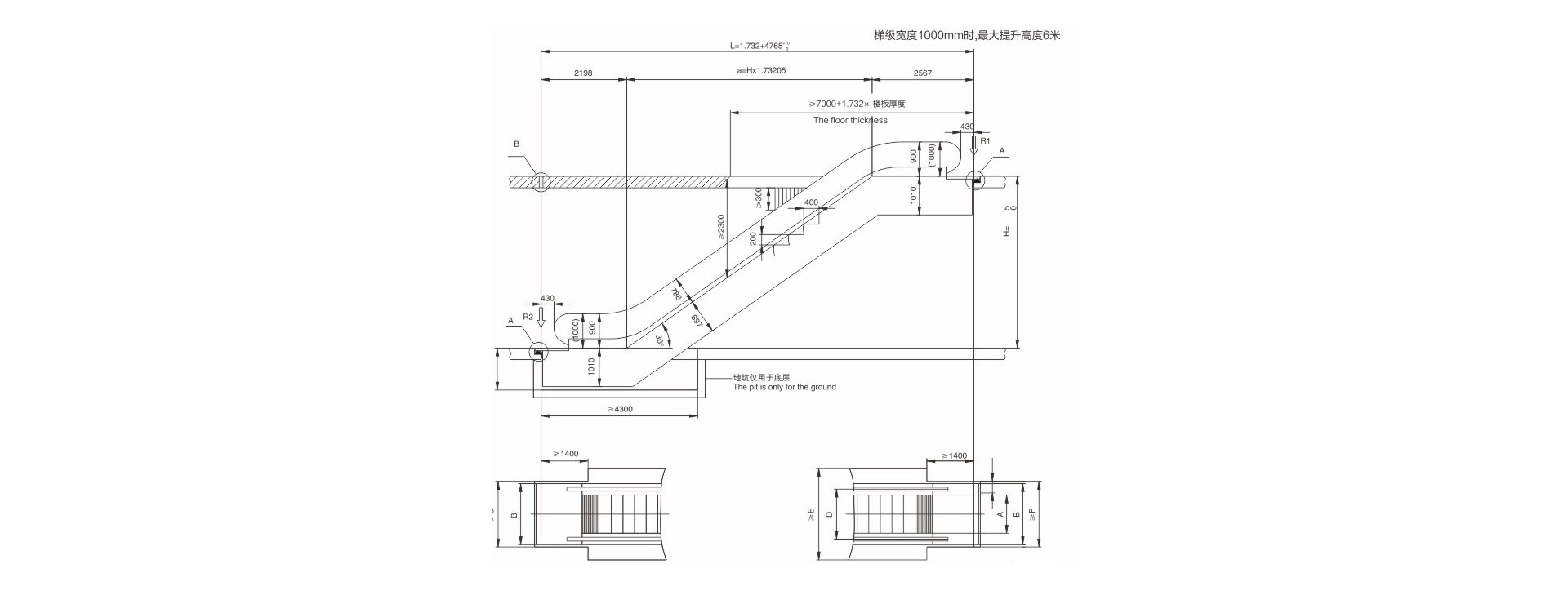

Technical Description
Inclination 0°-6°
Speed 0.5 meters/second
Pedal type Aluminum alloy (semi-outdoor/outdoor)
Pedal width A 1000 800
Handrail center distance B 1238 1038
Overall width C 1600 1400
Load-bearing beam length D 1660 1400
Installation situation/driving method length
Indoor type/star delta 4000 4000
Indoor/frequency conversion
Semi-outdoor/star triangle
4600
Semi-outdoor type/frequency conversion 4600
Outdoor type/star triangle 4000
Outdoor type/frequency conversion 4600

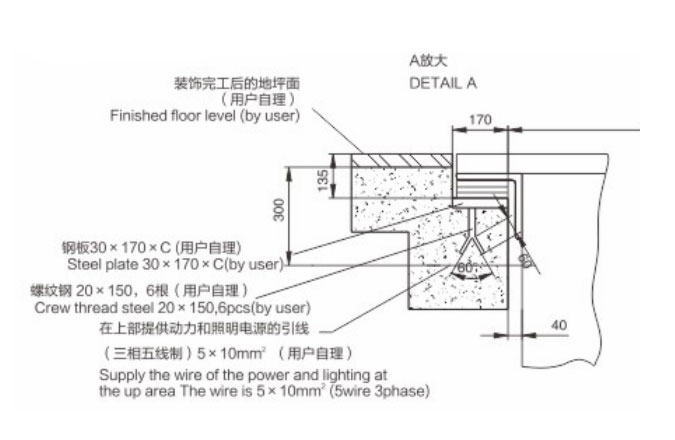

The user provides a 380V AC 50Hz three-phase five-wire power supply. When the sidewalk is started, the voltage drops by -10%. Under normal circumstances, the voltage drop is ≤5% when the sidewalk is running; the maximum starting current should be less than 3.5 times the rated current.

Moving walk
The professional fashion concept makes Vosam's moving walkway more beautiful in shape and smoother in curves. It not only allows passengers to appreciate the charm and luxurious style of modern architecture, but also takes safety and comfort as design standards, equipped with advanced driving devices and reliable safety The device adopts a series of shock-absorbing and anti-noise structures to make passengers feel comfortable, calm and stable during the ride.
